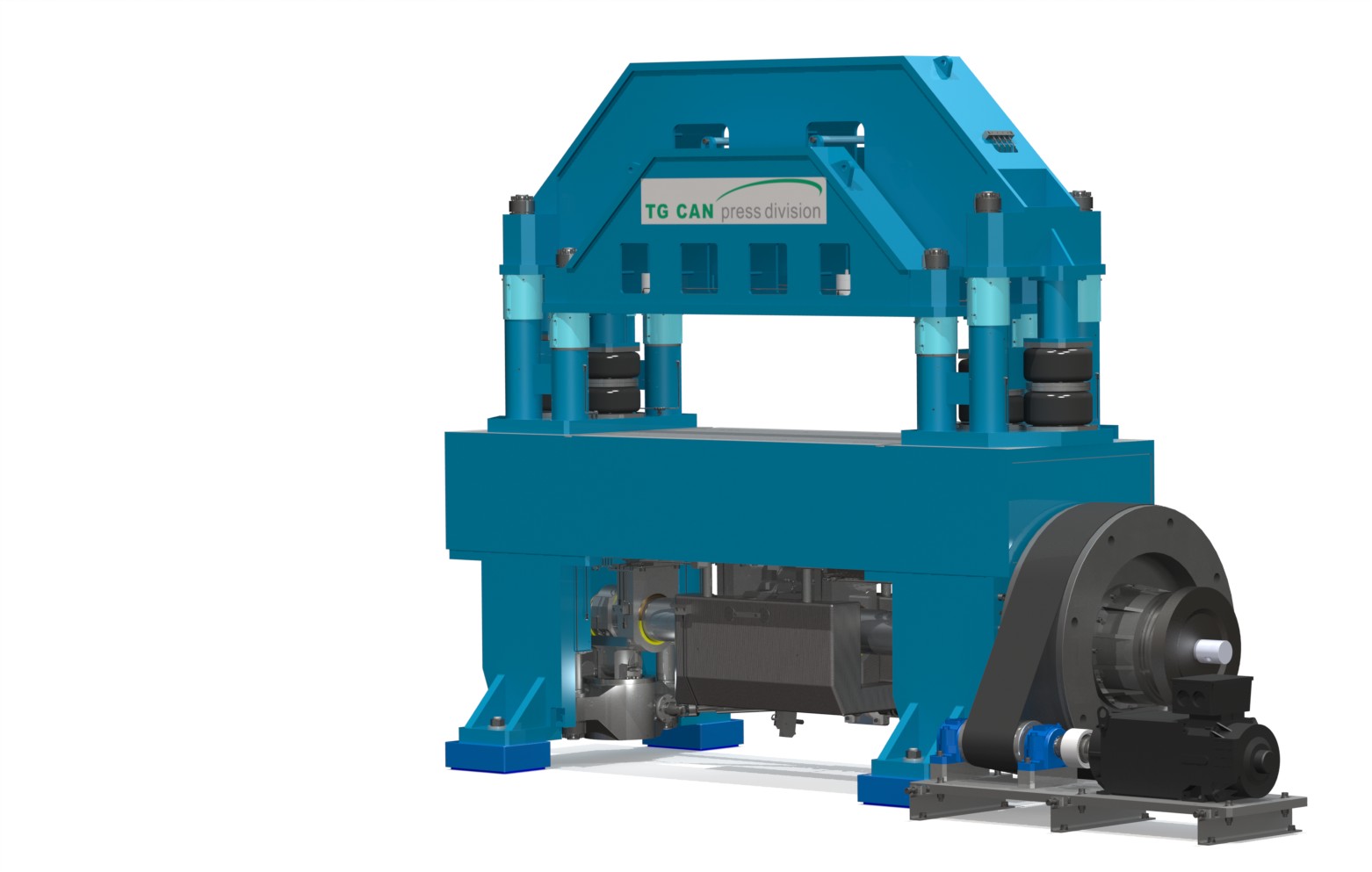

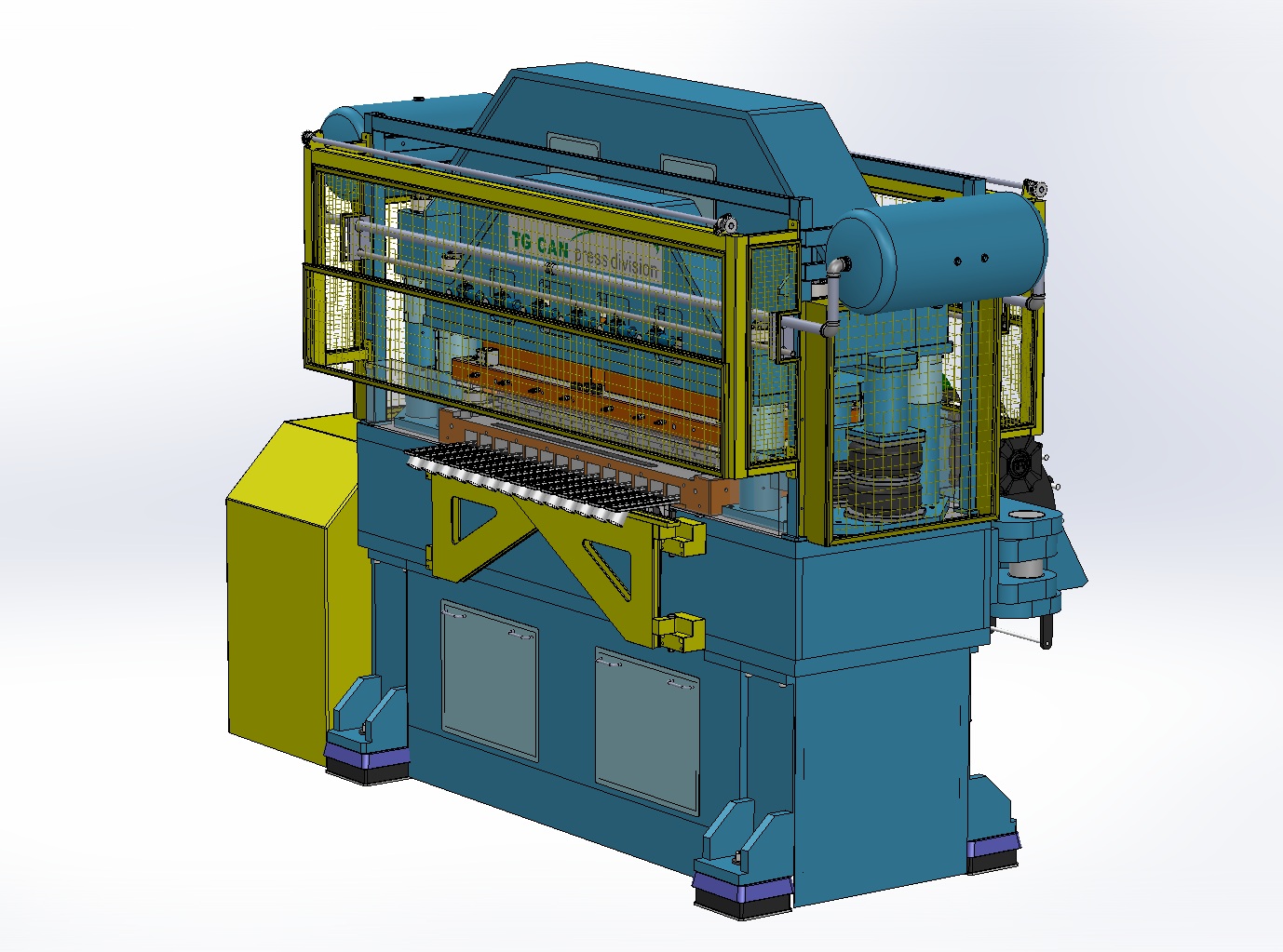

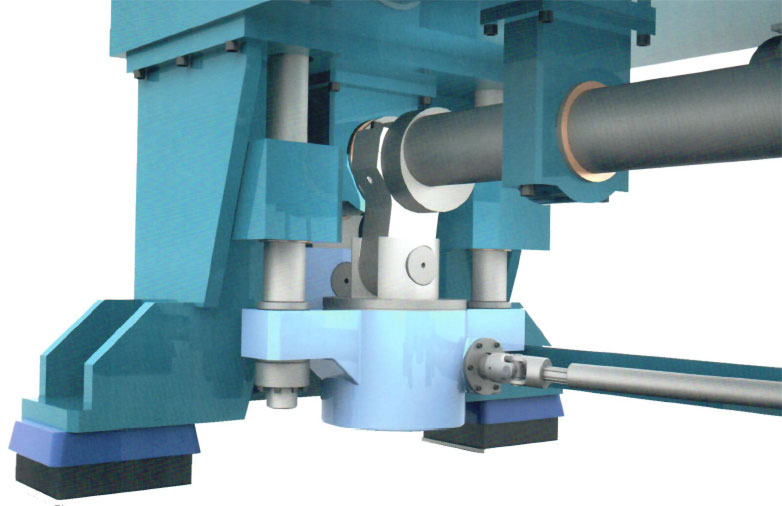

CM2000 High Speed Cupping Press
CM 2000
| General Specifications |
Metric Data |
Imperial Data |
| System Output (33cl) |
|
4500cpm |
| Cupping Die-Set |
|
15 out (33cl) |
| Air Requirement at 100psi |
|
350cfm |
| Electrical Requirement at 440v AC |
|
230 Amps |
| Press Weight |
35,000 Kg |
77,000 lb |
| Speed Range |
100-300 spm |
100-300 spm |
| Outer Slide Stroke |
76.3mm |
3.00″ |
| Outer Slide Shut-Height |
533.4mm |
21.00″ |
| Outer Slide Shut-Height Adj |
+/- 12mm |
+/-0.50″ |
| Inner Slide Stroke |
127mm |
5.00″ |
| Inner Slide Shut-Height |
698.5mm |
27.50″ |
| Press Bed Area |
2159mm x 1178mm |
85″ x 44″ |
| Press Bed Height from Floor |
1700mm |
67″ |
| Press Overall Height |
3850mm |
151″ |
| Floor Area [Press Bed Only] |
3700mm x 1800mm |
145″ x 71″ |
| Drive Motor Power |
85 kW |
114 hp |
CM 1000
| General Specifications |
Metric Data |
Imperial Data |
| System Output (33cl) |
|
4500cpm |
| Cupping Die-Set |
|
15 out (33cl) |
| Air Requirement at 100psi |
|
350cfm |
| Electrical Requirement at 440v AC |
|
230 Amps |
| Press Weight |
26,000 Kg |
57,200 lb |
| Speed Range |
100-300 spm |
100-300 spm |
| Outer Slide Stroke |
76.3mm |
3.00″ |
| Outer Slide Shut-Height |
533.4mm |
21.00″ |
| Outer Slide Shut-Height Adj |
+/- 12mm |
+/-0.50″ |
| Inner Slide Stroke |
127mm |
5.00″ |
| Inner Slide Shut-Height |
698.5mm |
27.50″ |
| Press Bed Area |
1175mm x 1178mm |
46″ x 46″ |
| Press Bed Height from Floor |
1700mm |
67″ |
| Press Overall Height |
3850mm |
151″ |
| Floor Area [Press Bed Only] |
2580mm x 1800mm |
102″ x 71″ |
| Drive Motor Power |
85 kW |
114 hp |
